Tutorial: Event Capture to Analytics

Are you a developer that is about to launch a dApp and you want your dApp interface to show up-to-date data?

With ZettaBlock, you can easily do that. As long as your contract is verified on a main -scan explorer, like EtherScan/PolygonScan, you will be able to find event data decoded with us.

But even if it is not a verified contract, our decoding algorithm looks for common patterns across networks, so if your contract was deployed on a different network before, we will attempt to decode it on every network we capture.

Here’s how you can find Compound Finance supply/withdrawal events for USDC, on Polygon.

How to create your own custom logic to display on your dApp

Step 1: SQL query to find supply/withdraw events

 SELECT
    *
    FROM polygon_mainnet.logs as logs
    WHERE 1=1
    AND data_creation_date >=DATE('2023-03-07')
    AND try(topics[1]) IN ('0xd1cf3d156d5f8f0d50f6c122ed609cec09d35c9b9fb3fff6ea0959134dae424e','0x9b1bfa7fa9ee420a16e124f794c35ac9f90472acc99140eb2f6447c714cad8eb')

Step 2: Putting it all together: event capture logic + price, to generate metrics

with deposit_withdraw_logs as
(
    SELECT
    *
    FROM polygon_mainnet.logs as logs
    WHERE 1=1
    AND data_creation_date >=DATE('2023-03-07')
    AND try(topics[1]) IN ('0xd1cf3d156d5f8f0d50f6c122ed609cec09d35c9b9fb3fff6ea0959134dae424e','0x9b1bfa7fa9ee420a16e124f794c35ac9f90472acc99140eb2f6447c714cad8eb')
),
supply as (
SELECT
    l.block_time,
    l.block_number,
    l.transaction_hash,
    l.log_index,
    lower(t.contract_address) as contract_address_tf,
    lower(l.contract_address) as contract_address,
    lower(l.argument_values[1]) as from_address_evt,
    lower(l.argument_values[2]) as to_address_evt,
    l.argument_values[3] as amount,
    t.symbol,
    t.decimals,
    CAST(l.argument_values[3] AS DOUBLE)/CAST(POW(10,t.decimals) AS DOUBLE) as token_amount,
    l.data_creation_date
FROM deposit_withdraw_logs as l
INNER JOIN polygon_mainnet.erc20_evt_transfer as t ON t.transaction_hash=l.transaction_hash AND l.argument_values[3]=t.value
AND lower(t.contract_address) = '0x2791bca1f2de4661ed88a30c99a7a9449aa84174'
WHERE t.data_creation_date >= DATE('2023-03-07')
AND try(l.topics[1]) = '0xd1cf3d156d5f8f0d50f6c122ed609cec09d35c9b9fb3fff6ea0959134dae424e'
AND lower(l.contract_address) = '0xf25212e676d1f7f89cd72ffee66158f541246445'
),
withdraw as (
SELECT
    l.block_time,
    l.block_number,
    l.transaction_hash,
    l.log_index,
    lower(t.contract_address) as contract_address_tf,
    lower(l.contract_address) as contract_address,
    lower(l.argument_values[1]) as from_address_evt,
    lower(l.argument_values[2]) as to_address_evt,
    l.argument_values[3] as amount,
    t.symbol,
    t.decimals,
    CAST(l.argument_values[3] AS DOUBLE)/CAST(POW(10,t.decimals) AS DOUBLE) as token_amount,
    l.data_creation_date
FROM deposit_withdraw_logs as l
INNER JOIN polygon_mainnet.erc20_evt_transfer as t ON t.transaction_hash=l.transaction_hash AND l.argument_values[3]=t.value
AND lower(t.contract_address) = '0x2791bca1f2de4661ed88a30c99a7a9449aa84174'
WHERE t.data_creation_date >= DATE('2023-03-07')
AND try(l.topics[1]) = '0x9b1bfa7fa9ee420a16e124f794c35ac9f90472acc99140eb2f6447c714cad8eb'
AND lower(l.contract_address) = '0xf25212e676d1f7f89cd72ffee66158f541246445'
),
prices as
(
  select
    minute,
    avg(price) as price,
    lower(symbol) as symbol
  FROM prices.usd
  WHERE data_creation_date >= DATE('2023-03-07')
  AND lower(symbol) IN ('usdc')
  group by 1,3
),
with_price as
(
    SELECT
    w.*,
    'withdraw' as action,
    p.price
    FROM withdraw as w
    INNER JOIN prices as p
    ON DATE_TRUNC('minute',w.block_time)=DATE_TRUNC('minute',p.minute)

    UNION DISTINCT

    SELECT
    s.*,
    'supply' as action,
    p.price
    FROM supply as s
    INNER JOIN prices as p
    ON DATE_TRUNC('minute',s.block_time)=DATE_TRUNC('minute',p.minute)
),
final_table as
(
SELECT
    block_time,
    block_number,
    transaction_hash,
    log_index,
    contract_address_tf,
    contract_address,
    from_address_evt,
    to_address_evt,
    amount,
    symbol,
    decimals,
    token_amount,
    token_amount*price as amount_usd,
    action,
    data_creation_date
FROM with_price
)
-- Create Metric to capture inflows from the contract daily + cumulative flows (TVL)
SELECT
date_time,
token_flow,
SUM(token_flow) OVER (order by date_time) as tvl_in_token,
token_flow_usd,
SUM(token_flow_usd) OVER (order by date_time) as tvl_in_usd
FROM
(
SELECT
    data_creation_date as date_time,
    SUM(CASE WHEN action='supply' THEN token_amount ELSE -token_amount END) as token_flow,
    SUM(CASE WHEN action='supply' THEN amount_usd ELSE -amount_usd END) as token_flow_usd
FROM final_table
GROUP BY 1
)
ORDER BY 1 DESC

Step 3: Verifying the results

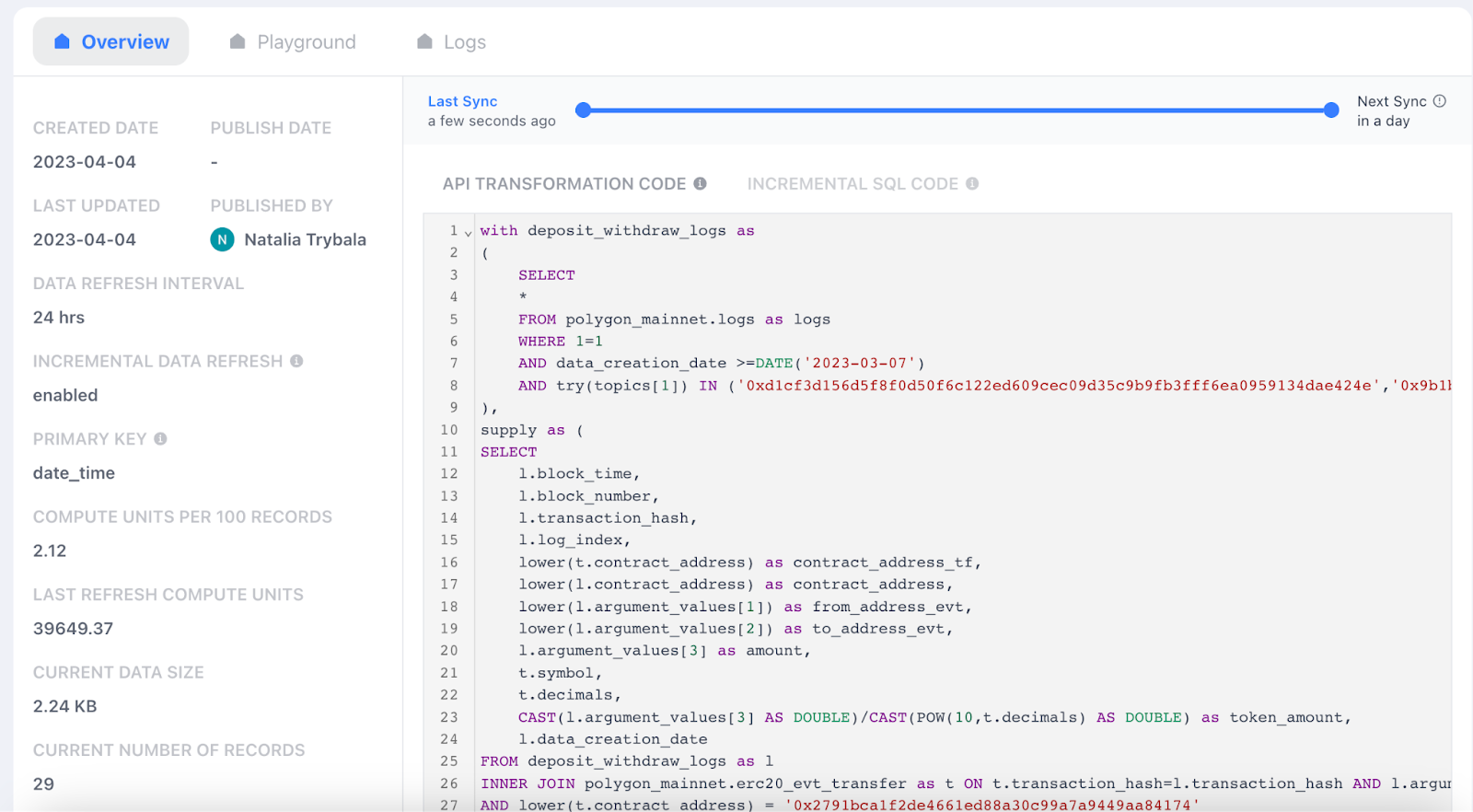

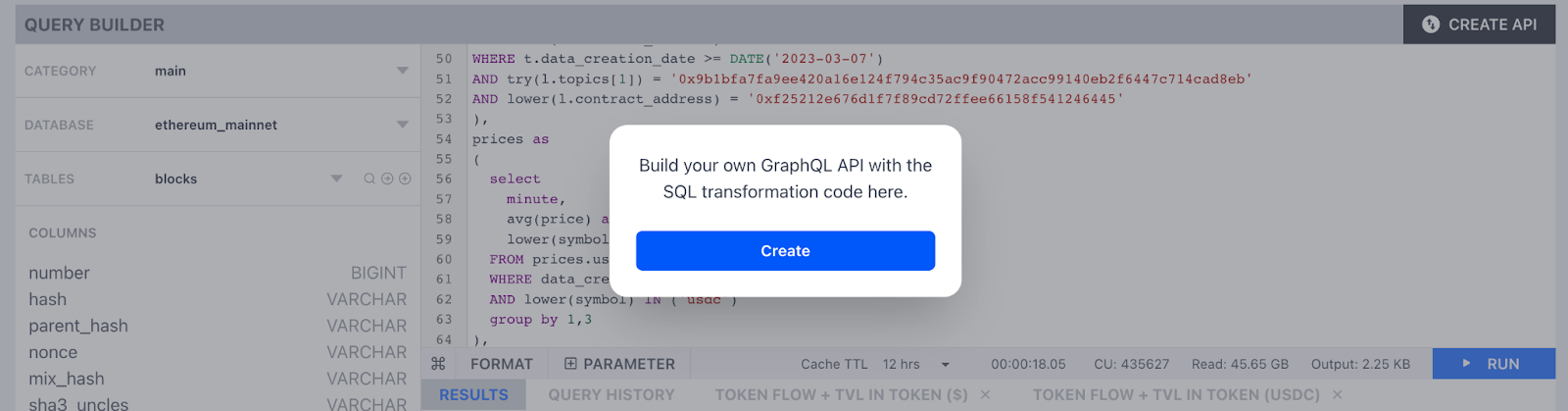

Step 4: Creating the API

  • Select your desired refresh rate and the indexed fields.

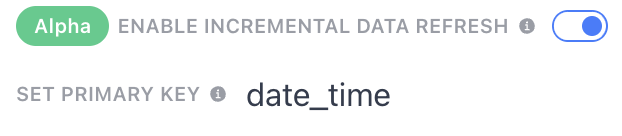

  • Enable Incremental Refresh:
  • Keep your API transformation code as it was. Within the Incremental SQL code, change:
DATE(data_creation_date) >= DATE(β€˜2023-03-07’)

To:

DATE(data_creation_date) >= CURRENT_DATE - INTERVAL '3' DAY

Keep in mind that this change has to be done for every time data_creation_date occurs within the query. To learn more about Incremental refresh, visit this document.

The API is now ready!
